SPECIFICATIONS

Frequency Response:
35Hz to 20kHz (see Figure 1)



Power Capacity:
300 watts RMS
120 watts minimum recommended power



Protection:
Three independent self-resetting devices
(low, mid-range and high frequency)



Sensitivity:
84 dB (1 watt / 1 meter)



System Impedance:
8Ω nominal

Driver Components:

High frequency: 1” (25 mm) neodymium motor
Midrange frequency: Four 1” (30 mm) neodymium motors
Low-frequency: dual1.5” (38 mm) voice coil, 8” (203 mm)
woofer and ceramic 20 oz. (622 gr) magnet



Polar Dispersion:
170 degrees vertical and horizontal

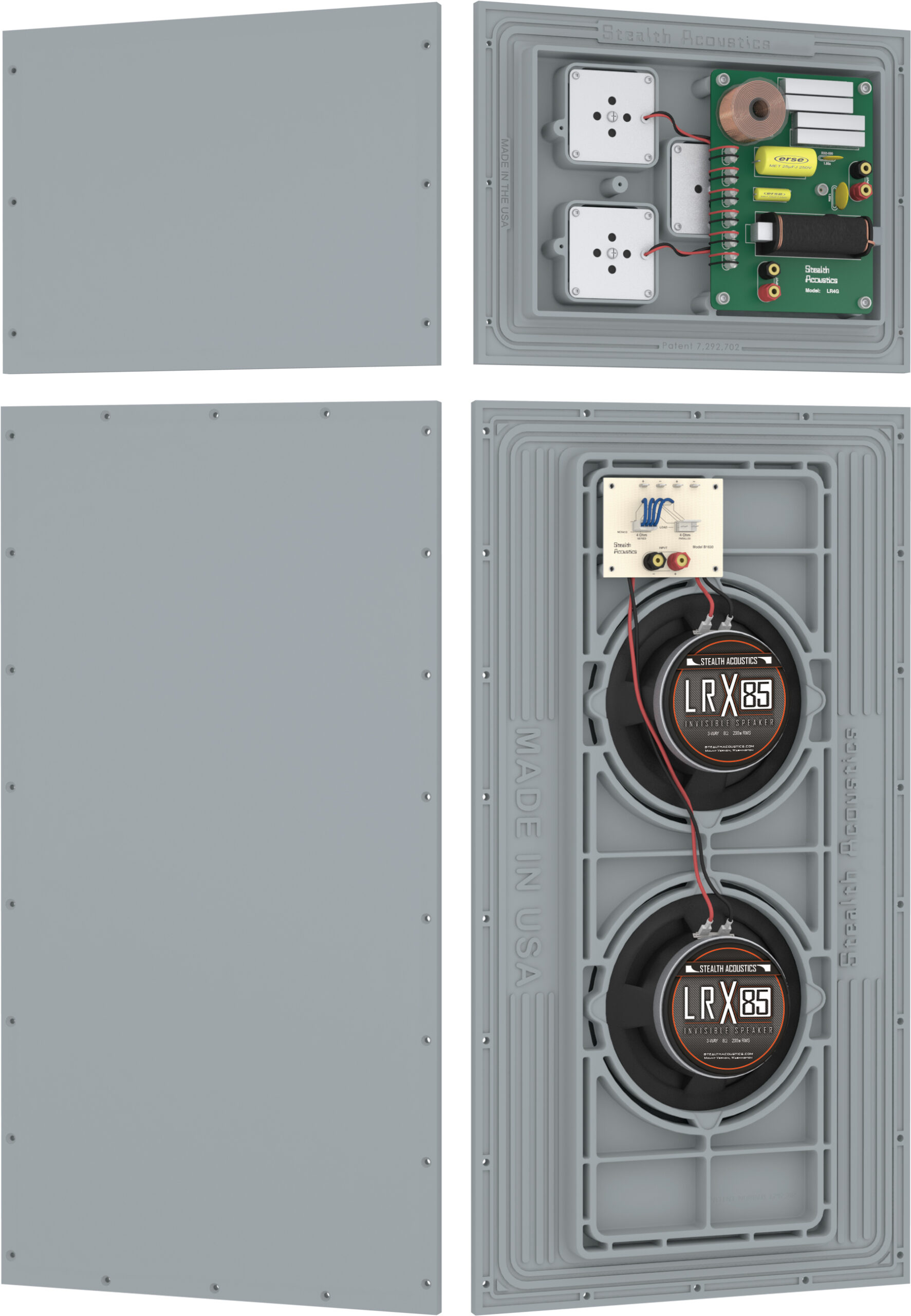

Dimensions LRX85-HM (High-Mid Panel only):
Width: 15⅞” (403 mm)
Height: 12” (305 mm)
Mounting Depth: 2¾” (70 mm)



Dimensions LRX85-LF (Low Frequency Panel only):
Width: 15⅞” (403 mm)
Height: 30” (762 mm)
Mounting Depth: 2½” (64 mm)



Shipping Weight:
61 lbs. (28 kg) per pair (4 Panels)



Included Accessories:
Mounting shims
Mounting screws
Terminal wrench
